Modified PA66 (Nylon 66) Compounds — High-Temperature GF30, FR V0, CTI 600V Grades
Need Higher Heat? This Is Your Grade.

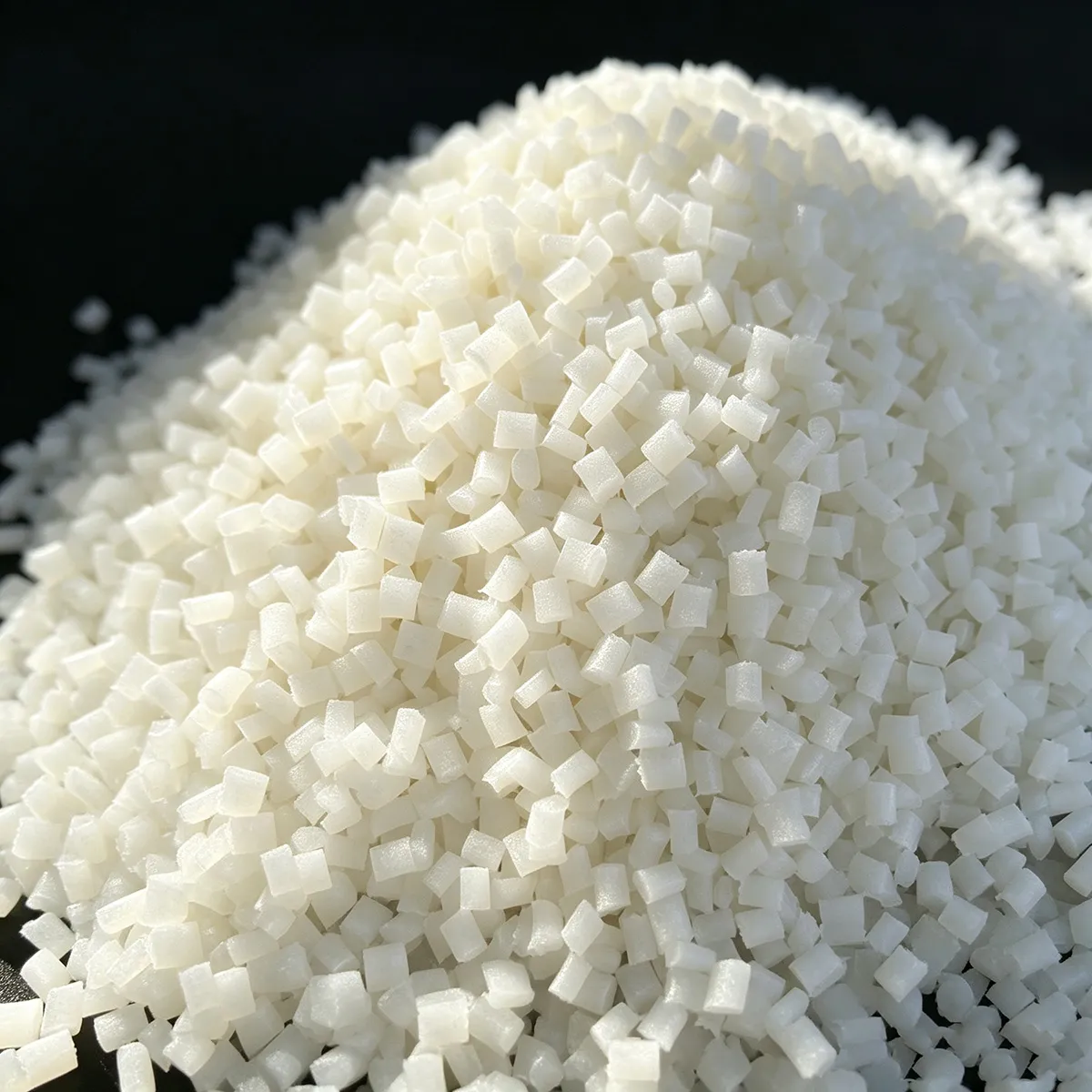

Juhai PA66 (Polyamide 66 / Nylon 66) compound lineup delivers HDT up to 250°C, UL94 V0 flame retardance and CTI 600V tracking resistance. Engineered for automotive underhood, 800V EV connectors and industrial power transmission components. Batch-to-batch Cpk ≥ 1.33 on all critical mechanicals.
Full PA66 Grade Lineup
Four tailored PA66 compounds covering 90% of automotive, EV electrical and industrial heat-structure applications. Click any grade for full data sheet, CoC sample template and specific price.
PA66 BFE04 · PA66 GF30 Reinforced
Premium PA66 with 30% glass fiber reinforcement. HDT @1.8MPa = 250°C, tensile strength 190 MPa. Benchmark for high-temperature automotive and electronic components.
PA66 FR25 · Flame Retardant V0 GF25
Halogen-free flame retardant PA66 with 25% glass fiber. UL94 V0 @ 0.8mm, GWIT 775°C. Optimized for connectors, relays and electrical housings.
Why Choose Our PA66 Compounds
Four production-line advantages that translate into real cost and risk reduction for your molding floor and end-product warranty.
Every critical property controlled to 4-sigma — no surprise molding adjustments between lots.
In-house CTI lab validates every batch of CT600 grade to 620V min.
2025 PA66 line scrap & return rate: 0.42% across 128 shipments.
Molding troubleshooting, flow simulation or grade substitution — answer within a day.
High-Temperature Performance Spotlight
PA66 has long been the workhorse of underhood automotive and hot-side industrial design — but not all PA66 GF30 grades survive real-world 180°C+ environments. Our PA66-BFE04 and ETF-HT grades use a proprietary copper-salt + hindered-amine synergistic heat stabilizer package that preserves tensile and impact strength after thousands of hours at continuous operating temperatures where competing economy PA66 grades start to embrittle and crack.
| Property | Test Standard | Juhai PA66 GF30 (BFE04) | Typical PA6 GF30 (Competitor) | Difference |
|---|---|---|---|---|
| HDT @ 1.82 MPa | ISO 75/Af | 250 °C | 195 °C | + 55 °C |
| HDT @ 0.45 MPa | ISO 75/Bf | 262 °C | 208 °C | + 54 °C |
| Melting Peak Tm | ISO 11357 | 260 °C | 221 °C | + 39 °C |
| Tensile Strength Retention (1000 h @ 180°C) | Internal JH-TH-A01 | 92 % | 68 % | + 24 pts |
Automotive Underhood Case Study — Thermostat Housing Cracking
Background: A North American Tier-1 was seeing 3.1% field creep-cracking failure on a glass-filled thermostat housing operating at 175–190°C peak with a competing standard PA66 GF30.
Switch: Material changed to Juhai PA66-BFE04 with advanced heat stabilizer and higher fiber wet-out. Same tool, same molding parameters.
Result: After 12 months / 140,000 km accelerated fleet validation and 8 production lots → 0 failures, 97% HDT retention vs. initial spec, tensile Cpk 1.42. Now sole-source for the platform.
PA66 vs PA6 Cost Tradeoff Calculator
Many engineers ask: "When is the extra heat performance of PA66 worth the price premium over PA6?" Use our 50,000 parts/year reference case below. Your Juhai sales engineer can customize this spreadsheet for your exact part weight, failure cost and operating temperature.
| Line Item (50,000 parts/yr × 85 g) | Juhai PA66 GF30 (BFE04) | Competitor PA6 GF35 (Economy) | Net Difference |
|---|---|---|---|
| Material Price (USD/kg) | $ 2.75 / kg | $ 1.85 / kg | + $ 0.90 / kg |
| Annual Material Use (50k × 85g) | 4,250 kg → $ 11,688 | 4,250 kg → $ 7,863 | PA66 + $ 3,825 |
| Expected Field Failure Rate (warranty + recall) | 0.3% × avg $60/claim = $ 900 | 3.2% × avg $60/claim = $ 9,600 | PA66 − $ 8,700 |
| Net Annual Total Cost | $ 12,588 | $ 17,463 | PA66 SAVES $ 4,875 |
→ Extrapolated 3-year program saving: $ 14,625 (plus intangible brand & recall risk elimination)
Datasheet & Mechanical Properties
Typical values for representative Juhai PA66 GF30 grade (BFE04). All tests performed on 4mm ISO multipurpose specimens conditioned at 23°C / 50% RH for 16 hours per relevant ISO / IEC standard. Individual lot CoC (Certificate of Conformance) shipped with every order.
Mechanical Properties
| Property | Test Standard | Value (PA66 GF30 · BFE04) |
|---|---|---|
| Tensile Strength | ISO 527 | 185 MPa |
| Tensile Modulus of Elasticity | ISO 527 | 9,200 MPa |
| Elongation at Yield | ISO 527 | 3.0 % |
| Elongation at Break | ISO 527 | 3.3 % |
| Flexural Strength | ISO 178 | 275 MPa |
| Flexural Modulus | ISO 178 | 8,400 MPa |
| Notched Izod Impact (1A), 23°C | ISO 180 | 18 kJ/m² |
| Unnotched Izod Impact (1U), 23°C | ISO 180 | 78 kJ/m² |
| Charpy Notched Impact (1eA), 23°C | ISO 179 | 14 kJ/m² |
| Rockwell Hardness (R Scale) | ISO 2039-2 | R 118 |
Thermal Properties
| Property | Test Standard | Value (PA66 GF30 · BFE04) |
|---|---|---|
| Heat Deflection Temperature @ 1.82 MPa (HDT-A) | ISO 75/Af | 250 °C |
| Heat Deflection Temperature @ 0.45 MPa (HDT-B) | ISO 75/Bf | 262 °C |
| Melting Point (DSC Peak, Tm) | ISO 11357 | 260 °C |
| Vicat Softening Temperature (B/50) | ISO 306 | 248 °C |
| Coefficient of Linear Thermal Expansion (Flow) | ISO 11359-2 | 2.8 × 10⁻⁵ °C⁻¹ |
| Continuous Use Temperature (UL 746B, Elec.) | UL 746B | 140 °C (evaluated) |
Physical & Electrical Properties
| Property | Test Standard | Value (PA66 GF30 · BFE04) |
|---|---|---|
| Density | ISO 1183 | 1.38 g/cm³ |
| Melt Volume-Flow Rate (MVR) @ 280°C / 5.0 kgf | ISO 1133 | 24 cm³/10 min |
| Mold Shrinkage — Flow Direction | ISO 294-4 | 0.30 % |
| Mold Shrinkage — Cross Direction | ISO 294-4 | 0.90 % |
| Water Absorption (24 h, 23°C immersion) | ISO 62 | 0.6 % |
| Water Absorption (Equilibrium, 23°C / 50% RH) | ISO 62 | 2.5 % |
| Surface Resistivity | IEC 60093 | 1 × 10¹⁵ Ω/sq |
| Volume Resistivity | IEC 60093 | 1 × 10¹⁴ Ω·cm |
| Comparative Tracking Index — CTI | IEC 60112 | CTI 2 (≥ 250V) — CTI 600V on PA66-CT600 grade |
Processing & Handling Guidelines
Injection Molding Parameters
| Process Parameter | Recommended Range (PA66 GF30) | Notes |
|---|---|---|
| Pre-Drying | 90 °C × 4 hours; to < 0.05% moisture | Dehumidifying dryer mandatory (−40°C dew point). PA66 hydrolyzes faster than PA6 if wet. |
| Barrel Temp — Rear / Middle / Front | 260 °C / 280 °C / 295 °C | Avoid front-zone overshoot beyond 305°C to prevent diamine depolymerization / blistering. |
| Nozzle Temperature | 285 - 295 °C | Match front zone; open nozzle preferred for PA66 to prevent freeze-off. |
| Mold Temperature | 80 - 110 °C | 100°C recommended for HDT critical parts; improves GF impregnation and surface. |
| Injection Pressure | 90 - 150 MPa | Thin-wall / long-flow connectors may need 140 MPa+ with fast first-stage fill. |
| Holding Pressure | 55 - 80% of injection pressure | Hold time 15–30 s per mm wall thickness to control sink on rib bosses. |
| Screw Back-Pressure | 8 - 15 bar | Higher than PA6 — PA66 benefits from extra mixing shear on GF wet-out. |
| Screw Speed (RPM) | 60 - 120 rpm | Moderate-to-low to minimize shear-induced GF breakage and black specks. |
Storage & Shelf Life
- Store in original sealed aluminum-moisture-barrier bags below 30°C and below 65% RH (PA66 is significantly more hygroscopic than PA6 in the same ambient).
- Keep away from direct sunlight, steam pipes and any source of ambient moisture.
- Shelf life under sealed proper conditions: 18 months from manufacturing date printed on bag label. After 18 months re-test MVR and moisture before use.
- Once a bag is opened, process within 72 hours or re-seal with desiccant and re-dry before next production run.
Typical Applications
Where Juhai PA66 compounds deliver real value: parts where continuous heat, electrical safety or high stiffness under load is non-negotiable.
Automotive Underhood
Thermostat housings, water outlets, engine covers, turbo actuators, air intake manifolds, rocker covers.
EV High-Voltage Connectors
800V platform HV connector housings, busbar insulators, PDU housings, on-board charger structural parts.
Electrical Switchgear
MCB / MCCB base housings, terminal blocks, relay frames, arc extinguish chamber insulation parts.
Power Tool Motors
Cordless drill / impact driver motor end caps, brush holders, transmission carriers, hammer mechanism frames.
Industrial Gears
Medium-load injection-molded worm / spur gears, gear carriers, gear pump housings, conveyor drive wheels.
Bearing Cages
Solar Junction Boxes
PV module junction box housing, bypass diode holder, cable gland compression body. CTI 600V rated.
Medical Device Structural
Surgical instrument handles, pump heads, diagnostic equipment chassis frames. ISO 10993 biocompatibility on request.
Automotive Grade Compliance Zone
All Juhai PA66 compounds are produced under our IATF-aligned quality control protocol. We supply OEM-validated data packs covering the following automotive and industrial compliance documents — full Declaration of Conformity (DoC) package available as a download or on request with your quote:
RoHS 2.0
EU Directive 2015/863
10 restricted substances
ELV (2000/53/EC)
End-of-Life Vehicle
Pb, Hg, Cd, Cr⁶⁺ < limit
PAHs 18
German GS / AfPS GS-2019-01
18 polycyclic aromatics
VOC / VDA 278 DoC
Thermodesorption VOC / FOG
emission compliance letter
Packaging, MOQ & Shipping
| Standard Export Packaging | 25 kg heat-sealed kraft / PE composite export bag with inner aluminum moisture barrier (critical for PA66) |
|---|---|
| Pallet Configuration | 40 bags per fumigated ISPM-15 wooden pallet = 1,000 kg (1 MT) per pallet; stretch-wrapped + edge boards + corner protectors |
| MOQ (Minimum Order Quantity) | 1,000 kg (1 full pallet / 40 bags × 25 kg). 100–500 kg paid trial lots available for new part qualification. |
| Stock Grade Lead Time | 3–5 working days after payment (EXW Ningbo) for BFE04 / FR25 / ETF-HT / CT600 black standard. |
| Custom Color / Custom Formulation MOQ | 5,000 kg (5 pallets). RAL / Pantone match; FR, CTI or heat-stabilizer package customizations. |
| 20 ft FCL Loading | ~ 20,000 kg (20 pallets of 1 MT standard) / ~ 22,000 kg palletless bulk bag configuration |
| Documentation Included | Commercial Invoice, Packing List, Bill of Lading / AWB, Certificate of Origin (Form F / Form E on request), CoC batch test report, RoHS/REACH/ELV/PAHs compliance DoC, MSDS |
Frequently Asked Questions (FAQ)
Juhai PA66-BFE04 is formulated to directly match DuPont Zytel 70G30HSLR and BASF Ultramid A3EG6 type 30% GF heat-stabilized PA66 performance envelopes. Typical property match is within ±5% on tensile, modulus, HDT and impact against data sheet center values — sufficient for drop-in testing on most non-safety parts. Send us your current grade spec and our engineers will provide a full side-by-side comparison table plus 2 kg free sample for your own molding trial. For UL Yellow Card listed equivalents, we can supply third-party tested documentation.
Yes. PA66-FR25 (25% GF, halogen-free flame retardant PA66) is formulated to pass UL94 V-0 at 0.8 mm minimum wall thickness on standard test bars with no drips. We supply an in-house UL94 test report and photos free with your initial sample request. Our parent-line UL file (UL Yellow Card) is in progress and scheduled for Q4 2026 issuance — interim third-party lab reports (SGS / CTI) are available now and accepted by most Tier-2 and consumer-electronics OEMs for program qualification.
Yes. For new project qualification and prototype molding we offer three lower-volume options: (a) Free 2 kg lab sample (freight collect via DHL/FedEx for international). (b) 25 kg single-bag paid sample for short-run tool tryout (~$125–150/ bag depending on grade). (c) 100–500 kg trial lots broken from stock production (5–10% per kg premium over 1T+ price). All small lots ship with the same full CoC and compliance paperwork as production orders. Contact sales for exact trial pricing.
Absolutely. Every shipment includes a full traceable data pack: (1) Certificate of Conformance (CoC / batch Test Report) listing the actual tested results for that production lot — tensile, modulus, HDT, MVR, density, moisture vs. your purchase spec. (2) RoHS 2.0 + REACH + ELV + PAHs multi-standard Declaration of Conformity (DoC). (3) Material Safety Data Sheet (MSDS / SDS) current version. (4) Commercial Invoice, Packing List, BL/AWB and Certificate of Origin. (5) Optional on request: UL94, CTI, IATF-process letter, VDA 278 VOC test data, FDA food-contact or ISO 10993 biocomp reports for specific grades.
Request Quote, Datasheet or Free 2kg Sample
Fill in the form below — our PA66 technical sales engineer will reply within 24 hours with datasheet PDF, EXW Ningbo price, lead time and sample availability. Mark the free-sample box if you want 2 kg shipped to your lab.
Inquiry Form — Modified PA66 (Nylon 66) Grades
💡 Cost Saving Tip — Room Temperature Structural Parts?
If your part does not see continuous temperatures above 140°C, does not need V0 flame or CTI 600V, our modified PA6 grades deliver ~80% of PA66 stiffness at −15 to −25% lower cost per kg.
👉 Need −15% lower cost for room-temp structural parts? See Our Modified PA6 Grades →
